GENEVO GUARD77
USER MANUAL
CONGRATULATIONS ON PURCHASING GENEVO GUARD77

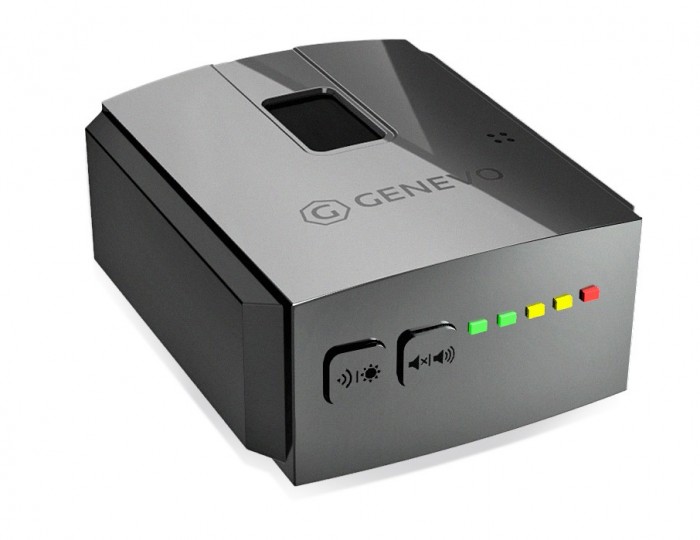

MAIN FEATURES OF YOUR GENEVO GUARD77 DETECTOR:
GENEVO GUARD77 is our first 77 GHz radar detector. It is designed primarily to protect the driver from unnecessary penalties for speeding thanks to reliable detection of:
- W-band radars
- Smart Micro radars
- EKIN Patrol
- GATSO Sensyss 77 Radars
ALERT INTERPRETATION:
In the case of a radar alert, a visual warning appears on the LED lights and an audio tone (beep) will alert you on the oncoming radar speed measurement. The signal strength is indicated both by the LED lights and beep rate.
QUICK GUIDE:
USER SETTINGS:
SENSITIVITY SETTINGS:
- CITY - Reduced sensitivity (The detector will alert to strong signals only. We recommend using the reduced sensitivity only in the case of frequent false alerts.)
- HIGHWAY - Maximum detector sensitivity.
CITY / HIGHWAY - Press the Sensitivity / Brightness button to switch between CITY and HIGHWAY mode
- (Yellow and red LEDs will light up in the CITY mode and ALL LEDs on the HIGHWAY mode)
BRIGHTNESS SETTING - Hold the Sensitivity / Brightness button for 2 seconds - All LEDs will start flashing. Now by pressing the Sensitivity / Brightness button, you can adjust the brightness of the LEDs:
- BRIGHT - Visible in day light
- DIM - Comfortable for driving at night
- SMART DARK - LEDs only lights up on detection or other event
- To select the desired option wait for 5 seconds, when saved successfully, all LEDs will flash three times.
POWER ON / OFF - The device will turn on automatically when connected to a power source.
- Hold the Sensitivity / Brightness button for 5 seconds - The device will turn OFF.
- Press the Sensitivity / Brightness button again to turn the device ON.
MUTE - (During radar alert only), by shortly pressing the Volume button, the alert volume will be reduced to minimum.
- Press 2 x - the Volume button to mute the alert completely (The LEDs will continue to flash during the alert).
- Press 3 x - of the same button, the volume will be back to the default setting.
- (Mute alert settings only apply to the current radar alert)
VOLUME SETTINGS - Hold the VOLUME button for 2 seconds, the current VOLUME LEVEL will start flashing on the LEDs, now by pressing the VOLUME button you can choose between 1 to 5 volume levels (The LEDs will increase/decrease according to the VOLUME LEVEL).
- To select the desired option wait for 5 seconds, when saved successfully, all LEDs will flash three times.
FIRMWARE UPDATES:
- To update your device continue to: genevoupdate.com
On these websites, you will find help on how to update and also a newsletter form, so we will keep you informed about every newly released update.
TECHNICAL PARAMETERS:
Operating band: 76 ~77 GHz
Operation temperature: -20 °C - +70 °C
Storage temperature: -30 °C - +80 °C
Operation voltage: 12 – 24 V DC
Dimensions: 95 mm × 89 mm × 40 mm
Power Input: Pmax= 5 W
Connector polarity: Positive
Power consumption: 320 mA normal, 420 mA max (at 12 V)
SAFETY INSTRUCTIONS:
We recommend that you install the product using the included bracket with suction cup on the windshield so that it does not obstruct your view. Alternatively, the product can be placed in another location provided it is securely fastened to prevent the device from moving by itself. The device must be powered using the supplied 12V cable (to be plugged into a 12V plug in the vehicle) to the appropriately marked plug on the device.
Restrictions on placing in service or applicable requirements for permission to use:
Country: AT, BG, CY, DE, DK, EE, ES, FI, FR, GR, IR, IT, LT, LU, LV, MT, NL, PL, PT, SE, SK
Requirements: Please check your legislation before use. If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
CE - DECLARATION OF CONFORMITY:
The manufacturer, GENEVO s.r.o., hereby declares that GENEVO GUARD77 equipment complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full Declaration of Conformity can be downloaded at: genevo.com/en/ce-guard77-en.pdf
